Led Lamp Testing Equipment , Led Testing Equipment 0-30 Degree GB7000
Thông tin chi tiết sản phẩm:
| Place of Origin: | China |
| Hàng hiệu: | KingPo |
| Chứng nhận: | Calibration Certificate |
Thanh toán:
| Minimum Order Quantity: | 1 |
|---|---|
| Giá bán: | To be quoted |
| chi tiết đóng gói: | gói thùng carton an toàn hoặc hộp ván ép |
| Thời gian giao hàng: | 7 ngày làm việc |
| Payment Terms: | T/T |
| Khả năng cung cấp: | 50 chiếc mỗi tháng |
|
Thông tin chi tiết |
|||
| Environment: | 0℃～+40℃ | power supply: | 220V±10% 50Hz |
|---|---|---|---|
| Tilt angle: | 0-30 ° stepless adjustable | precision: | ± 0.5 ° |
| maximum weight load: | 50kg | Motor speed: | 0.50r/min |
| Điểm nổi bật: | temperature rise test equipment,led testing equipment |
||
Mô tả sản phẩm
Light Testing Equipment Lamp Tilt Test Bench 0-30 Degree GB7000
Product information:

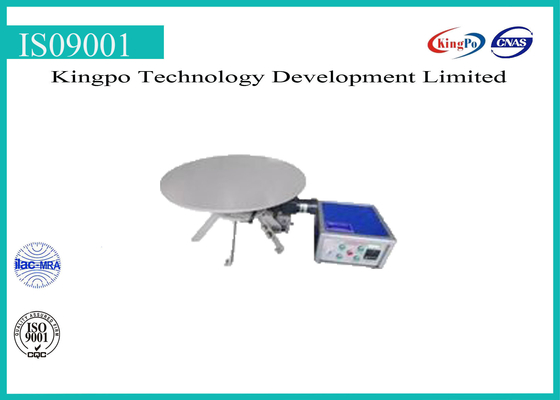

This device complies with GB7000 and other standards, the device consists of a work surface and angle adjustment device, is suitable for all types of portable lamps and similar electrical appliances products for mechanical stability test, the test sample is placed on countertops, to assess its mechanical stability through different tilt angles.
Technical specification and parameter configuration
|
Working condition:
Environment:0℃～+40℃；Working power supply :220V±10% 50Hz
|
|
Technical index: 1, Tilt angle :0-30 ° stepless adjustable, electric control, encoders intelligent digital display; equipped with angle measuring instrument calibration, easy to operate, high accuracy angle, precision ± 0.5 °; 2, The maximum weight load: 50kg, (load can be improved as per customer requirements)steel plate surface is treated by painting; 3, Motor speed: 0.50r/min (frequency control for optional), there are reliable earthing contact and power plug connector on the test bench of accessible metal surface; 4, Table diameter: 800mm； 5, The test bench with stable whole structure, and beautiful appearance. |
