300W Battery Testing Machine For For Charging / Discharging / Voltage Testing

Thông tin chi tiết sản phẩm:

Place of Origin: china
Hàng hiệu: KingPo
Chứng nhận: iso9001
Model Number: BTS-60V5A

Thanh toán:

Minimum Order Quantity: 1
Giá bán: To be quoted
chi tiết đóng gói: gói thùng carton an toàn hoặc hộp ván ép
Thời gian giao hàng: 35 ngày làm việc
Payment Terms: TT
Khả năng cung cấp: 3 bộ mỗi tháng
Liên hệ với bây giờ

Thông tin chi tiết

Dải điện áp không đổi: 0,3V~60V Phạm vi/kênh đầu ra hiện tại: 0,025A~5A
Phạm vi/kênh đầu ra công suất: 300w Thời gian đáp ứng hiện tại: thời gian tăng hiện tại tối đa 20ms
Tần suất ghi dữ liệu: 10Hz Các bước làm việc chu kỳ đơn: 254
Điểm nổi bật:

Hệ Thống Kiểm Tra Pin

,

Phòng Kiểm Tra Pin

,

Máy Kiểm Tra Pin 300W

Mô tả sản phẩm

BTS-60V5A Standard Power Battery Testing System , Battery Continuous charge ,Battery Forced Discharge



Technical Parameter:

BTS-60V5A Battery tester
Model Number: BTS- 60 V 5 A Battery tester Material code: CT-4016 -60V5A - NTA - P
items Parameter
Input power AC 380V ±10% / 60Hz
Input active power 6278 W
resolution ratio AD:16bit;DA:16bit
Input impedance ≥100kΩ
voltage Constant voltage range 0.3V~60V
Minimum discharge voltage 3V
accuracy ± 0.1% of FS
stability ± 0.1% of FS
current Output range/channel 0.025A~5A
accuracy ± 0.1% of FS
Constant voltage cut-off current 0.01A
stability ± 0.1% of FS
Power Output range/channel 300W
stability ±0.2% of FS
time Current response time maximum current rising time20ms
working step time range ≤(365*24)h/working step
Data record Record data conditions Minimum time interval:100ms
Minimum voltage interval:120mV
Minimum current interval:10mA
Record frequency 10Hz
Charge Charge mode constant-current charge,constant-voltage charge,constant voltage and current charge
cut-off conditions Voltage,current,relative time,capacity,-△V
discharge Discharge mode constant current discharge, constant watt discharge
cut-off conditions Voltage,current,relative time,capacity,-△V
Impulse mode Charge Constant current,Constant power
Discharge Constant current,Constant power
Minimum impulse width 500ms
Number of pulses one single pulse working step can support 32 different pulses
Continuous switch of charge and discharge one pulse working step can continuously switch from charge to discharge
cut-off conditions Voltage,relative time
DCIR test Support customized picking up point to perform DCIR calculation

cycle Loop test range 1~65535 times
Single cycle working steps 254
Loop nest Nested loop function,max 3 layers
Protection ● Data Protection
● off-line test
● security conditions can be set including voltage upper/lower limit,current upper/lower limit and delay time
●anti reverse connection
IP Protection Class IP20
Channel feature constant current and voltage source ;double closed-loop;
Channel control mode independent
Current/voltage detection sampling four-wire connection
noise <85dB
data base MySQL centralized management of test datas
upper computer communication mode TCP/IP
Server disk Configuration 500GB
Data output mode EXCEL 2003,2010,TXT
Server operating system Windows 7
communication interface ethernet
Working environment requirement
item parameter
working temp. range 0℃~40℃(within25±10℃,ensured accuracy:precision drift0.005% of FS /℃)
Storage temp. range -10℃~50℃
Working environment relative humidity range ≤70% RH(no water vapor condensation)
Storage environment relative humidity range ≤80% RH(no water vapor condensation)
Clamp specification and size
item parameter
Clamp type Polymer clamp
Pic 300W Battery Testing Machine For For Charging / Discharging / Voltage Testing 0 300W Battery Testing Machine For For Charging / Discharging / Voltage Testing 1 300W Battery Testing Machine For For Charging / Discharging / Voltage Testing 2
Alligator clamp Polymer clamp cable feet clamp
Pictures are for reference only,real objects shall prevail.Choose one
Cabinet size/unit(W*D*H)(mm) 30U(24”),730*600*1520

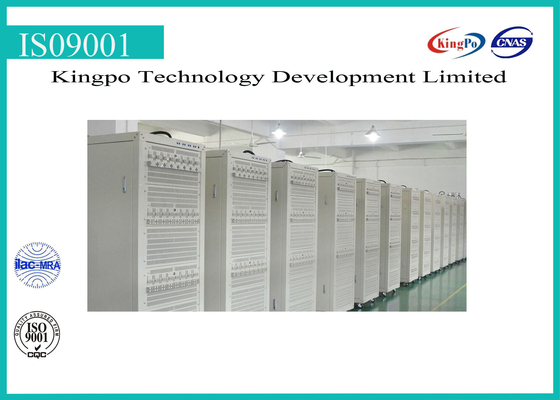

Equipment pic
Pictures are for reference only,real objects shall prevail.
Auxiliary channel type Temperature,voltage
Temp. range -25℃~110℃
Temp. range ±1℃
Temp. resolution ratio 0.1℃
Voltage range -5V~5V
Voltage accuracy ± 0.1% of FS
Available auxiliary temp.channel/channel customized(248 channel at most)
Available auxiliary voltage channel/channel customized(248 channel at most)
Protaction condition of Auxiliary channel ● security conditions of Auxiliary channel can be set including temperature upper/lower limit,voltage upper/lower limit and delay time,voltage difference of single cell
Note:incompatible with battery that has protection plate with soft start function.
