E27 Lamp cap gauge | Gauge For Caps On Finished Lamps for Testing Protection Against Accidental Contact During Insertion

E27 Lamp cap gauge | Gauge For Caps On Finished Lamps for Testing Protection Against Accidental Contact During Insertion

E27 Lamp cap gauge | Gauge For Caps On Finished Lamps for Testing Protection Against Accidental Contact During Insertion

Thông tin chi tiết sản phẩm:

Nguồn gốc: trung quốc dongguan
Hàng hiệu: kingpo
Chứng nhận: iso9001 iso17025
Model Number: 7006-51A-2

Thanh toán:

Minimum Order Quantity: 1
Giá bán: To be quoted
chi tiết đóng gói: gói thùng carton an toàn hoặc hộp ván ép
Thời gian giao hàng: 7 ngày làm việc
Payment Terms: T/T
Khả năng cung cấp: 1000 tính mỗi tháng
Liên hệ với bây giờ
Chi tiết sản phẩm
Hàng hiệu: Kingpo Standard: IEC60061-3
HRC: C58 To C60 Material: Hardness Steel

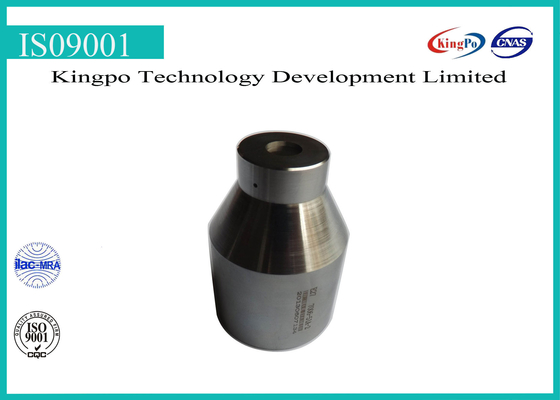

E27 Lamp cap gauge | Gauge For Caps On Finished Lamps for Testing Protection Against Accidental Contact During Insertion E27-7006-51A-2





Purpose: to check protection against accidental contact during insertion of caps E27 on finised lamps.



E27 Lamp cap gauge | Gauge For Caps On Finished Lamps for Testing Protection Against Accidental Contact During Insertion





LED Lamp Cap Gauge Series:



IEC60061-3, 7006-27B-1 "Go"gauges for E40 and E27 caps on finished lamps


IEC60061-3, 7006-28A-1 "Not Go"gauges for E27 caps on finished lamps IEC60061-3, 7006-50-1 Gauge for finished lamps fitted with E27 caps for testing contact making


IEC60061-3, 7006-51A-2 Gauge for E27 caps on finished lamps for testing port. Against acc. Contact during insertion

IEC60061-3, 7006-51-2 Gauge for caps on finished lamps for testing port. Against acc. Contact E27 51*39

IEC60061-3, 7006-27C-1 "Go"gauges for dimension "S1" of E27 caps on finished lamps

IEC60061-3, 7006-25A-2 E27 "GO "gauge for lampholders

IEC60061-3, 7006-26-4 E27"Not Go"plug gauge for screw threads of lampholders

IEC60061-3, 7006-21-5 E27 Gauge for testing port. Against bulb-neck damage and for testing contract making in lampholders

IEC60061-3, 7006-22A-4 E27 Gauge for testing contact making and port. Against acc. Contact during insertion

IEC60061-3, 7006-22B-1 E27 Gauge for detecting side-contacts with cutting-edges

IEC60061-3, 7006-22C-1 E27 Gauge I. For testing resilience of side contact

IEC60061-3, 7006-22D-1 E27 Gauge II. For testing resilience of side contact

IEC60238 Fig 11 E27 Test Cap for temperature test 14.4 and 19.3 of IEC60238


IEC60238 Fig 5 E27 Test Cap for torque test clause 18 of IEC60238

IEC60238 Fig 14 E27 Test Cap for resistance to heat test clause 19 of IEC60238
