PCL Control Luminaire Adjustment Test Device With LCD Panel Operation
Thông tin chi tiết sản phẩm:
| Place of Origin: | China |
| Hàng hiệu: | KingPo |
| Chứng nhận: | Calibration Certificate |
Thanh toán:
| Minimum Order Quantity: | 1 |
|---|---|
| Giá bán: | To be quoted |
| chi tiết đóng gói: | gói thùng carton an toàn hoặc hộp ván ép |
| Thời gian giao hàng: | 7 ngày làm việc |
| Payment Terms: | T/T |
| Khả năng cung cấp: | 50 chiếc mỗi tháng |
|
Thông tin chi tiết |
|||
| Place of origin: | Guangdong,China(mainland) | Standard: | GB/7000.1-2002 Chapter 4.14. And EN60598-1:2000 |
|---|---|---|---|
| Bending angle: | 0～180º adjustable（standard:135º at a vertical direction on both sides） | Test frequency: | 1～10 t/ min |
| Test number: | 0～999999times adjustable | Working voltage: | AC220V 50HZ |
| Điểm nổi bật: | temperature rise test equipment,led lamp testing equipment |
||
Mô tả sản phẩm

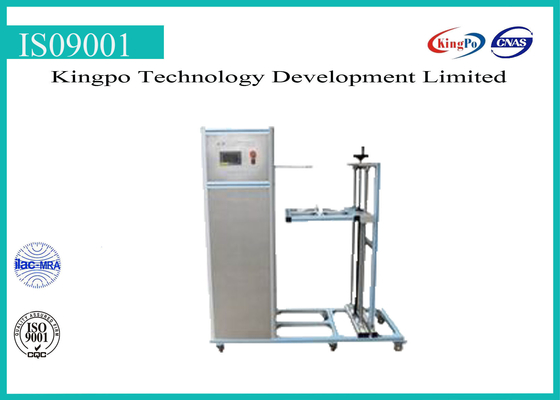

Luminaire Adjustment Test Device
Product Info:
Meet standards of GB/7000.1-2002 Chapter 4.14. And EN60598-1:2000
Function: Applied to testing adjustment device with soft cable and wire built in to check if its shares of conductor breakdown is in excess of 50% after continuous bending and if there is serious damage in insulation layer.
Product feature:adopts PCL control and LCD panel operation with adjustable test angle and speed;power focal positioning;bend the axis and luminaire swivel centre can achieve concentric rotation;accurate limit protection won’t damage luminaire and fixture;if conductor breakdown results in cutting off,panel will display current number and continuously finish the test with alert notification;has stable functions and easy operation.
Technical Parameters:
Suitable Luminaire:floodlight luminaire like painting used lamp,showcase soptlight,desk lamp,floor lamp,etc
Bending angle: 0～180º adjustable(standard:135º at a vertical direction on both sides)
Test frequency: 1～10 t/ min
Test number: 0～999999times adjustable
(one time means backing to the beginning from one end to another within adjustment range;can achieve angle changes at a swing speed of 600t/h)
Working voltage: AC220V 50HZ
