IP Testing Equipment High Pressure High Temperature Jetting Tester IPX9K-500 IP

IP Testing Equipment High Pressure High Temperature Jetting Tester IPX9K-500 IP
IP Testing Equipment High Pressure High Temperature Jetting Tester IPX9K-500 IP

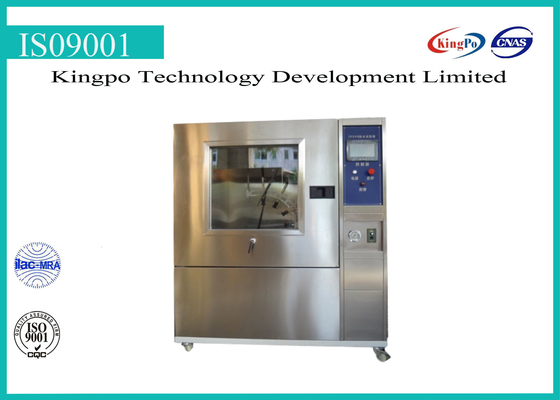

Hình ảnh lớn :  IP Testing Equipment High Pressure High Temperature Jetting Tester IPX9K-500 IP

Thông tin chi tiết sản phẩm:

Place of Origin: China
Hàng hiệu: Kingpo
Chứng nhận: Calibration Certificate
Model Number: IPX9K-500

Thanh toán:

Minimum Order Quantity: 1
chi tiết đóng gói: gói thùng carton an toàn hoặc hộp ván ép
Thời gian giao hàng: 25 ngày làm việc
Payment Terms: T/T
Khả năng cung cấp: 3-5 bộ mỗi tháng
Chi tiết sản phẩm
External dimension: 1300x1750x1000(WxHxD)mm spray angle: 0°,30°,60°,90°
spray hole: 4pcs distance between tested specimen: 100-150mm
spray pressure: 8000-10000kpa(81.5-101.9kg/c㎡) flow rate: 14-16L/min
Điểm nổi bật:

rain test equipment

,

rain test chamber



IPX9K500 High Pressure Waterproof Tester



Product Information

Applicable to testing electronic product in accordance with Degrees of Protection Provided By Enclosure IEC(IP code,enhanced type test)as per requirement of DIN40050.It is designed for waterproof test for auto parts,electrical and electronics,simulation natural environment and human factor.We have different models for different standard worldwide.



Model:XR-IPX9K-500

1.Test standard:DIN40050-9 ISO20653

2.Test space:800x800x800(WxHxD)mm

3.External dimension:1300x1750x1000(WxHxD)mm

4.Spray ring angle:0°,30°,60°,90°(4 positions)

5.Spray hole:4 pcs

6.Temperature of reservoir can reach 85℃(Hot water Jetting Test, High Pressure Hot water Jetting Test)

7.Speed of sample holder:5±1r.p.m

8.When spraying at 0°,30°,60°,90°,the distance between tested specimen is 100-150mm; 30s/ position.

9.Flow rate is 14-16L/min;spray pressure:8000-10000kpa(81.5-101.9kg/c㎡)



Material and Structure

External and internal cabinet is made of SUS304 stainless steel.Upper part are test room and control screen.Lower part is equipped with water pump(Italian high-pressure pump),solenoid valve(imported from Italy),constant temperature and backwater tank(SUS304 stainless steel),turntable motor(Panasonic) and gear reduction box.All control settings,like water temperature,nozzle control,pressure,time and flow,require WEINVIEW Human-Machine and PLC or a higher Industrial Control Component touch screen.





IP Testing Equipment High Pressure High Temperature Jetting Tester IPX9K-500 IP 0

IP Testing Equipment High Pressure High Temperature Jetting Tester IPX9K-500 IP 1
