IEC Test Equipment Rigid Finger Probe With EC61032 Figure 7 Device 11
Thông tin chi tiết sản phẩm:
| Place of Origin: | China |
| Hàng hiệu: | KingPo |
| Chứng nhận: | Calibration Certificate |
Thanh toán:
| Minimum Order Quantity: | 1 |
|---|---|
| Giá bán: | To be quoted |
| chi tiết đóng gói: | gói thùng carton an toàn hoặc hộp ván ép |
| Thời gian giao hàng: | 7 ngày làm việc |
| Payment Terms: | T/T |
| Khả năng cung cấp: | 50 chiếc mỗi tháng |
|
Thông tin chi tiết |
|||
| Place Of Origin: | Guangdong,China(mainland) | Standard: | IEC61032 figure 7 device 11,IEC60884,IEC60598,IEC60335,IEC60065 |
|---|---|---|---|
| Làm nổi bật: | jointed test finger,ul finger probe |
||
Mô tả sản phẩm

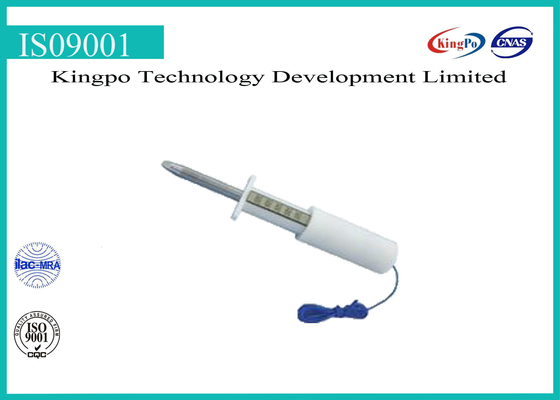

EC61032 Figure 7 Device 11 Rigid Test Finger Probe
Products information:
This rigid finger probe conforms to the standard requirement of IEC61032 figure 7 device 11,IEC60884,IEC60598,IEC60335,IEC60065. It is used to verify the protection of persons against access to hazardous parts, and to verify the mechanical strengthen of openings in the enclosure or internal barriers.
Customizable: It can be used for anti-electric shock test when equipped with amphenol connector. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer) .The probe whose model number is with "T" is with force.
There are two kinds of shell that can be chosen: the nylon shell(for anti-electric shock test) and stainless steel shell(for strength test)
Main specification and corresponding technical parameters:
| Parameters /Model | HT-I07 | HT-I07T1 | HT-I07T2 |
| Name | Test finger | Test finger with 50N force | Test finger with 75N force |
| 1 | 20 0 -0.05 | 20 0 -0.05 | 20 0 -0.05 |
| 2 | 80±0.2 | 80±0.2 | 80±0.2 |
| 3 | R2±0.05 | R2±0.05 | R2±0.05 |
| 4 | S4±0.05 | S4±0.05 | S4±0.05 |
| 5 | 37o 0 -10’ | 37o 0 -10’ | 37o 0 -10’ |
| 6 | 14 o 0 -10’ | 14 o 0 -10’ | 14 o 0 -10’ |
| 7 | Ф12 0 -0.05 | Ф12 0 -0.05 | Ф12 0 -0.05 |
| 8 | Ф50 | Ф50 | ---- |
| 9 | 5±0.5 | 5±0.5 | ---- |
| 10 | ---- | 0-50N force |
0-75N force |
