| MOQ: | 1 |
| giá bán: | To be quoted |
| bao bì tiêu chuẩn: | gói thùng carton an toàn hoặc hộp ván ép |
| phương thức thanh toán: | T/T |

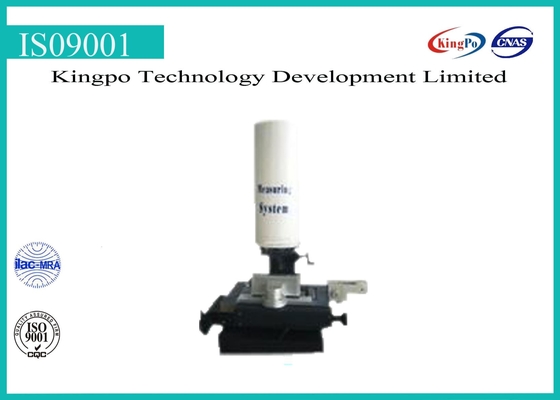

Curvature Radius Test Apparatus
Functional description
This test chamber is our company according to IEC60950-1:2005&GB4943.1-2011 standard NO.328 clause require to design manufacturer.This optical instrument test equipment is use for test of information technology equipment product’s meander & radius.The equipment is sample using that enlarge the samples may be adjusted in the computer test sample position scale with Intelligent optical measuring instrument, it can measure the diameter & radius of soft lines. All of the date is deal from computer and it can output with the date and shadowgraph.
Characteristic
1. It is simple using the computer of high magnification shadow casting technique,the precision can be 0.05mm
2. Automatic printing measure pictures and report, The file can be save for future reference.
3. High precision detection machine computer liquid crystal display (LCD)
Major functions
1. Magnification:20folds
2. measurement mode:CCD lens+ Graphical measurement software
3. Heavy view:<0.005mm
4. Raster resolution:0.001mm
5. indicating accuracy: 4+L/150μm
6. measurement mode:radius catch measure/set point simulate measure/error measure
7. The function of Image save future reference
8. measurement report stamp function (It can output image at the same time)
9. Wires size measure
10. Farmar hung heavy way
11. Clamp way: It can adjust degree clamp
12. Control way:personal compute + control software
